ADC^® ADView^® 2 Modular Diagnostic Station

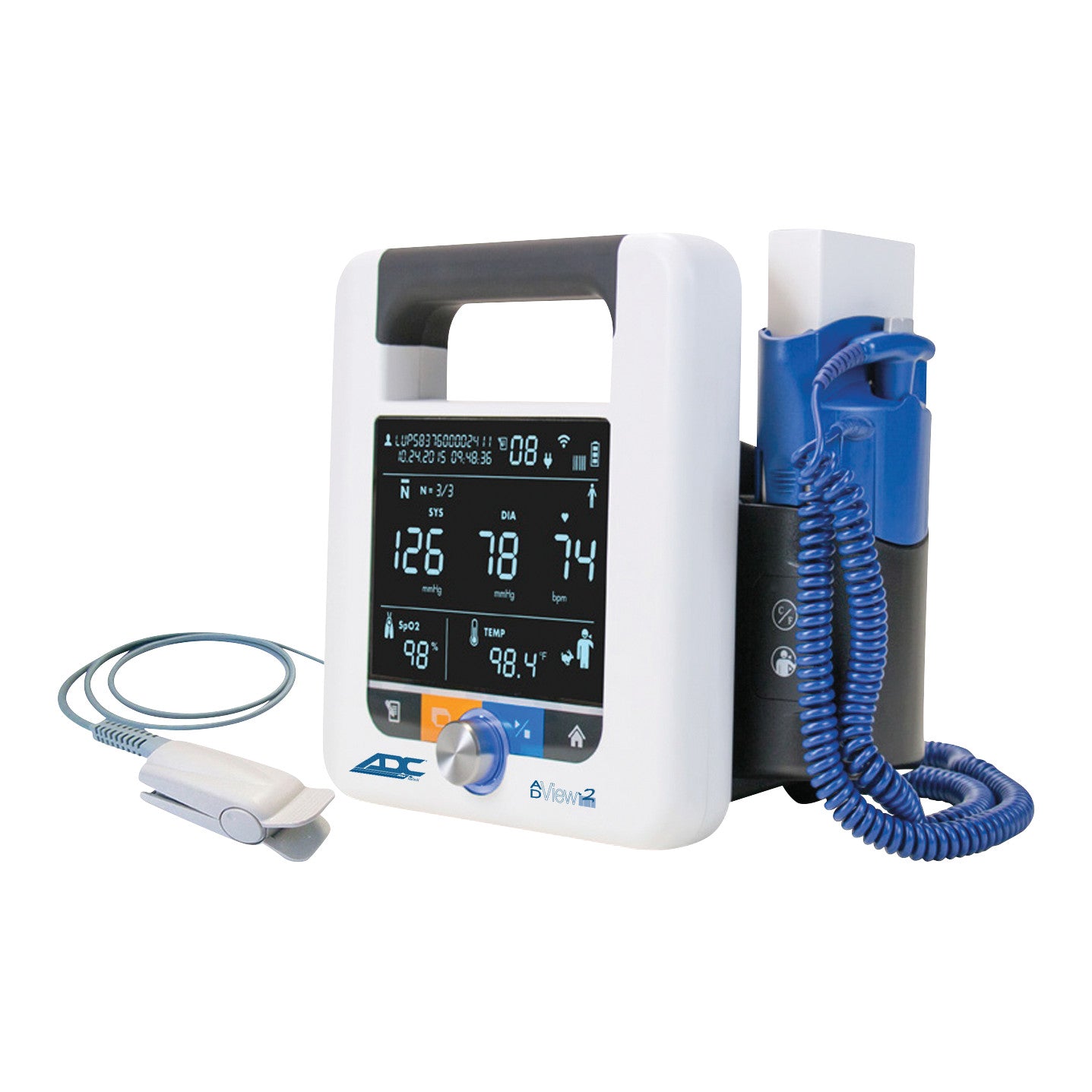

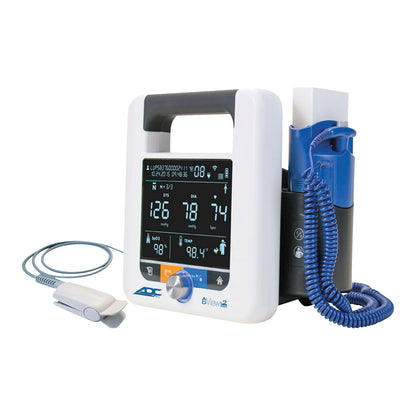

ADC® ADView® 2 Modular Diagnostic Station offers customizable measurement protocols, pediatric modes, and EMR connectivity, delivering comprehensive vital sign monitoring that adapts to the changing needs of clinical environments. Customizable, clinical-grade system designed to streamline vital sign measurements in healthcare settings. Starting with a base unit that provides automated blood pressure readings, the system can be expanded with optional modules for temperature and pulse oximetry (SpO2). Available in four configurations: Base Unit provides automated blood pressure measurement. Base Unit with Temperature Module adds temperature measurement. Base Unit with SpO2 includes pulse oximetry for monitoring oxygen saturation levels. Base Unit with SpO2/Temperature includes both pulse oximetry and temperature measurement for a comprehensive vital sign monitoring solution. Meets ANSI/AAMI/ISO 81060-2:2013 standard.

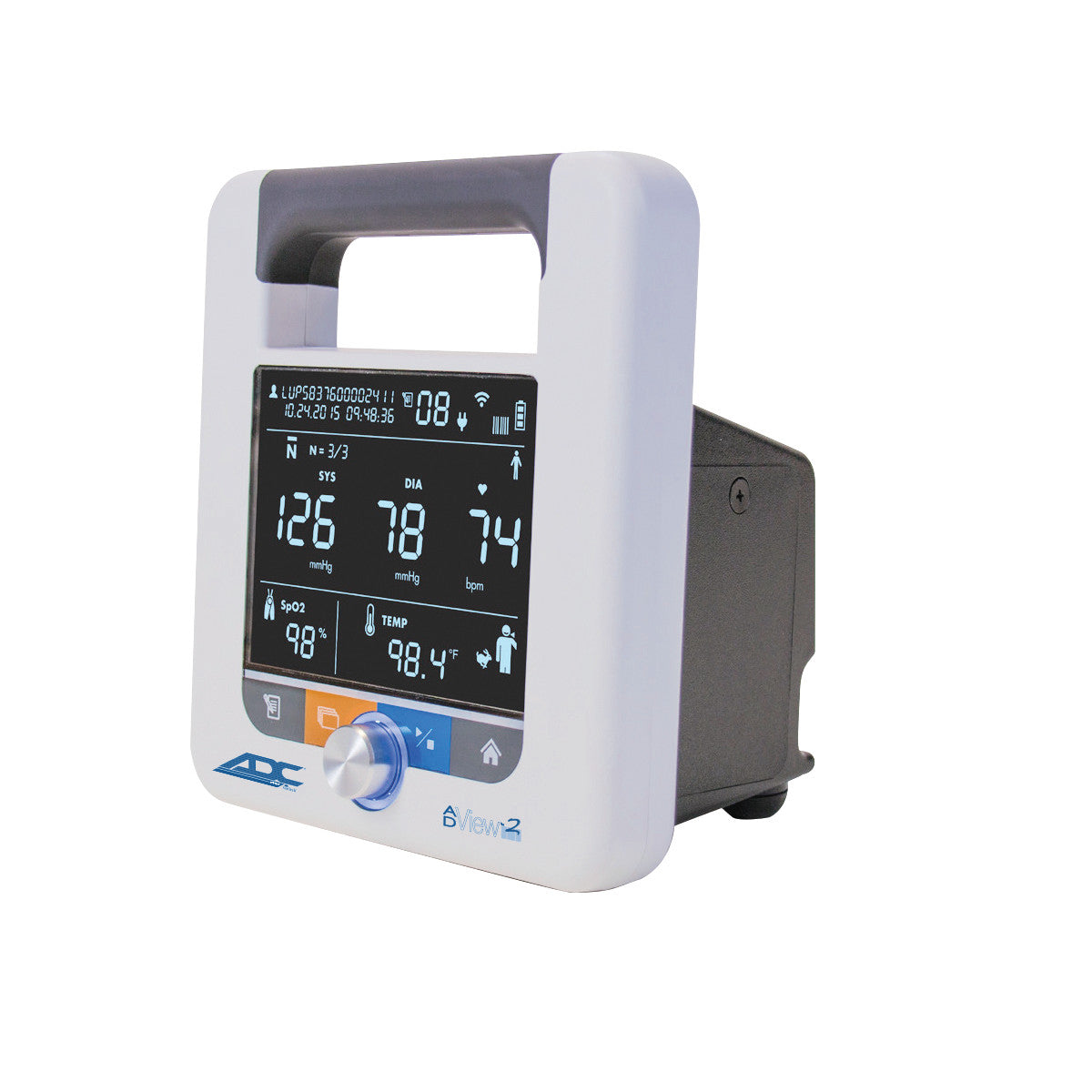

BP Base Unit: Includes rechargeable lithium-ion battery, U.S. power cord, 10'L tubing, Adult and Large Adult Adcuff+ cuffs, mini-USB to USB cable, quick reference guide, and quickstart guide • Blood pressure range: 20-200 mmHg diastolic (adult), 40-260 mmHg systolic (adult)

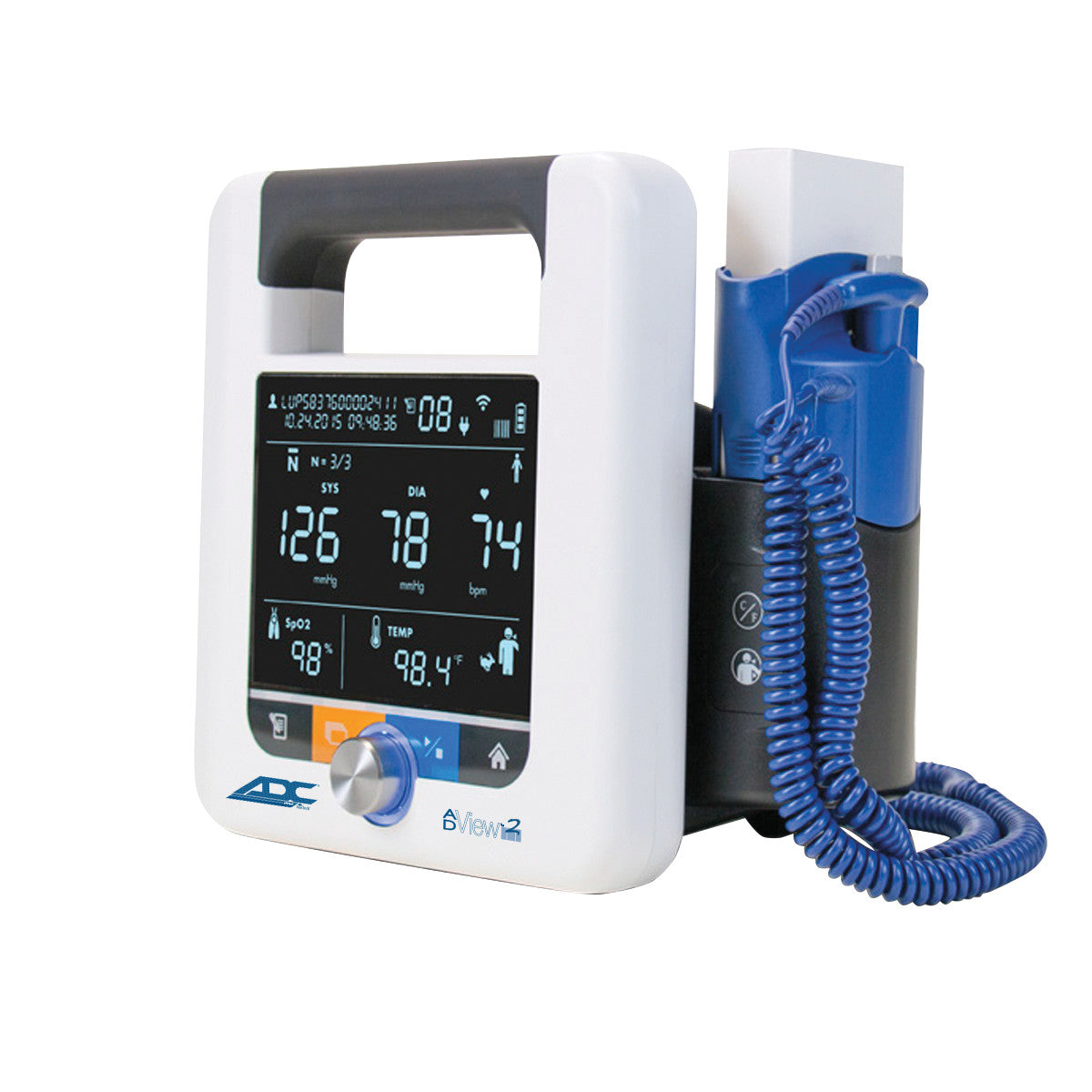

Temperature Module: Includes oral/axillary probe, well, and box of 20 probe covers • Temperature accuracy: +/-0.1°C for axillary/rectal and direct mode • Response time: 10-15 seconds (axillary/rectal)

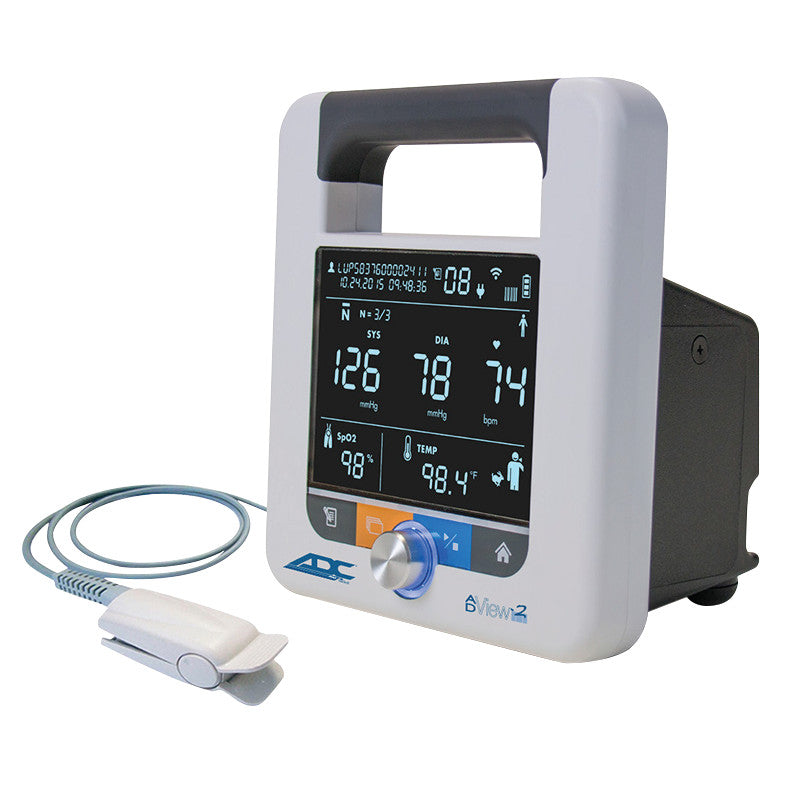

SpO2 Module: Includes adult finger sensor and 8'L extension cable • ChipOx Nellcor™-compatible • Pulse heart rate range: 20-300 BPM, accuracy +/-3 BPM with or without motion • Saturation range 70-100% with +/-2% accuracy in no motion
3-year warranty on Base Unit, SpO2 Module, and Temperature Module • 2-year warranty on cuffs • 90-day warranty on all other accessories
